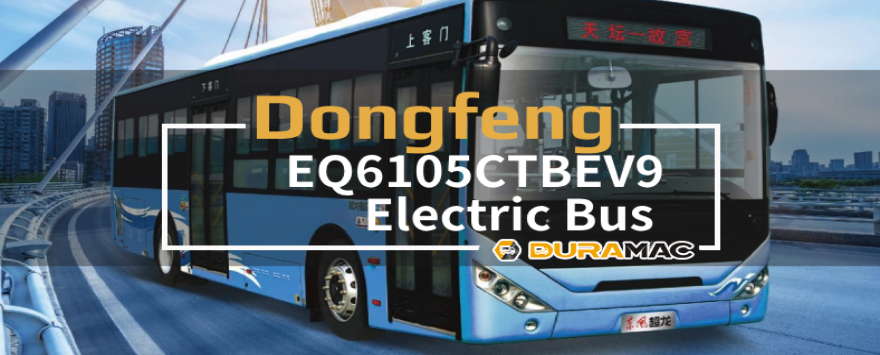

EQ6105CTBEV9 | Dongfeng Electric Bus
EQ6105CTBEV9 is a 10.5meter class pure electric city bus produced by Dongfeng Special Automobile Co., Ltd. It is equipped with lithium iron phosphate batteries (total storage capacity 255.48kWh), with a battery energy density of 160.26Wh/kg and a constant speed range of 480 kilometers; the body is 10490mm long, 2500mm wide, and 3020-3260mm high (optional air conditioning), with a rated passenger capacity of 75 people (including 21-40 seats).
Its unit load energy consumption (Ekg) is only 0.145Wh/km·kg, which meets the 2019 national new energy subsidy standards and has a maximum subsidy coefficient of 1 times. The vehicle is equipped with a satellite positioning driving recorder and ABS braking system as standard, and can be equipped with air conditioning and other configurations as an option. It is suitable for large and medium-sized urban bus systems.
As part of EMAC, DuraMac provides complete powertrain that integrated with DCEC engine, Fast-Eaton clutch, FAST-CAT transmission, Dongfeng-DANA axle and Komman air suspension, while the electrification of automobile is the certain future, Duramac also get involved with EV powertrain system.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
Advantages of Dongfeng EQ6105CTBEV9 Pure Electric Bus
-
The vehicle structure is reasonably arranged, and the passenger area space is maximized; the front and rear overhangs and wheelbase are moderately matched, optimizing the rear space in the car, changing the problem of the narrow rear space of the bus, making the ride more comfortable
Technical Specifications
| Total Length (mm): | 10490 |
| Total Width (mm): | 2500 |
| Total Height (mm): | 3020,3060,3260(air conditioner) |
| Interior Height of Compartment (mm): | 2280 |
| Wheelbase (mm): | 5000 |
| Front Suspension / Rear Suspension (mm): | 2380/3110 |
| Approach/Departure Angle (°): | 9/8 |
| Rated Total Mass (kg): | 18000 |
| Maximum Number of Occupants (persons): | 75/21-40 |
| Maximum Speed (km/h): | 60 |
| Tire Specification: | 1835/1670 |
DuraMac
DCEC ISL8.9 series automotive engine is four-strokes engine with 102 mm bore and 120 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 269 HP to 394 HP.
Fast Gear
The F6A Series Automated Transmission uses the FAST automatic transmission, has six front gears, the transmission ratio step arrangement is reasonable, has very outstanding fuel economy. Adopt hydraulic automatic transmission. The F6A Series Automated Transmission has six gears, each with a different reduction ratio.
EV Truck
Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment.
DANA Axle
Applying the advanced technology of DANA with high efficiency, fuel economy, strong load torque, low noise,high reliability, lower procurement cost, low repair cost and lower maintenance cost.
Datong Gear
The Datong HW25712XSJ Heavy Manual No-Sync Gearbox has a torque of 2500 N.m, a gear ratio range of 14.941-1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 993 mm, and a weight of 428 kg.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
Transmission Model |
Total Length(mm) |
Overall Width(mm) |
Total Height(mm) |
Maximum Speed (km/h) |
Maximum Total Mass(kg) |
| EQ6810CTBEV6 | 8060 | 2260 | 2860,2990 | 69 | 12500 |
| EQ6810CTBEV4 | 5985 | 2260 | 2860/(2910)/3025 | 100 | 8500 |
| EQ6850CTBEV2 | 8540 | 2500 | 3050,3090,3250 | 69 | 14000 |
| EQ6601CTBEV2 | 6020 | 2100,2160 | 2770/2820/2910 | 69 | 8500 |
| EQ6603CTBEV1 | 5990 | 2100,2160 | 2770/2820/2910 | 69 | 8500 |
| EQ6105CTBEV9 | 10490 | 2500 | 3020/3060/3260(air-conditioning) | 69 | 18000 | EQ6105CTBEV8 | 10490 | 2500 | 3020/3060/3260(air-conditioning) | 69 | 18000 |
| ——END—— | |||||
Basic information of Dongfeng EQ6105CTBEV9 motor |
|||||
| Motor Model | TZ480XSLC12BB | Motor manufacturer | |||
| Location/Fuel Type | Lithium iron phosphate | Motor type | Permanent magnet motor | ||
| Rated/peak power of motor (kw) | 120/200 | Rated/peak torque (N.m) | 1432/2500 | ||
| Total battery capacity (kWh)/voltage(V) | Ningde Times 255.48/560.28 | Driving range (40km/h constant speed method) | 480 | ||
| ——END—— | |||||
Chassis Parameters And Configuration |
|||||
| Item | Standard Configuration | Optional configuration | |||
| Front Axle | Dongfeng Dena Axle | maintenance-free | |||
| Rear Axle | Dongfeng Dana Axle | maintenance-free | |||
| Suspension | air suspension | — — | |||
| Shock Absorber | Suspension comes with built-in | — — | |||
| Steering | Hydraulic Power Steering | — — | |||
| Brake System | Front plate and back drum | Front plate and back plate | |||
| Brake | Air brake, dryer, condenser,ABS、 Self adjusting arm and shoe wear alarm | — — | |||
| Tire | 275/70R22.5 (without spare tire), steel wheel rim | Tire pressure monitoring, aluminum alloy wheels | |||
| Blast Pump | Oil-free piston | — — | |||
| Other | Electronic fan, centralized lubrication | — — | |||
| ——END—— | |||||
Main body Assembly |
||
| Item | Standard Configuration | Optional configuration |
| Body Structure | Full load bearing, high-strength steel assembly welding, front and rear skin stamping forming | — — |
| Interior | Panoramic aluminum alloy air duct, aluminum alloy bus handrails for the entire vehicle, and protective isolation facilities in the driving area | — — |
| Floor | Bamboo-woven floor | PVC flooring |
| Road Signs | — — | LED road signs, lightbox road signs |
| Car Doors And Door Pumps | Front single and middle double pneumatic inward swing passenger doors | — — |
| Side Windows | The driver’s window is an aluminum frame sliding window, and the rest are embedded sliding windows, with a color of F green | — — |
| Windscreen | Front laminated glass, rear tempered glass | — — |
| Rear View System | Steel frame asymmetric manual reversing mirror | — — |
| Air-Conditioning System | Top mounted electric single cooling air conditioner | Top mounted electric heating and cooling integrated air conditioner with battery thermal management system |
| Heating System | — — | Electric warm air |
| Defroster | Electric defroster | — — |
| Audiovisual System | MP3 player with microphone jack, USB charging port, multi-channel video recording system (32SSD card+6 probes+7-inch LCD display) | MP4 or MP5 car hard drive player, MP3 player with optional USB or SD card, 17 inch LCD display, 19 inch LCD display |
| Satellite Positioning System | Beidou satellite positioning and driving recorder | Equipped with external printing function |
| lamps And lanterns | Front and rear split lighting fixtures, front and rear fog lights, side turn signals, low beam height adjustable device | — — |
| Windshield Wiper | For scraping type | — — |
| Door | Aluminum alloy battery compartment door | — — |
| Seat | Mid range bus seat 33+1 shock-absorbing driver’s seat, driver’s seat belt alarm | — — |
| Paint | Domestic solid color paint (pattern according to customer requirements) | Metallic paint |
| Meter | CAN instrument panel with two vehicle modules | — — |
| Other | 2 4KG fire extinguishers, 7 safety hammers, emergency switches for passenger doors inside and outside the vehicle, 8 automatic fire extinguishers for electrical compartments, DC890A sunroof, 6-QW-802 pieces, half roll front sunshade, car terminal, low-speed alarm, quartz sand color dot floor leather, and foot pad under the brake pedal. | Side curtains, driver’s fan, electronic announcement device, drop off doorbell, quartz sand wear-resistant floor leather, coin operated machine, DC890B skylight, lifting ring, driver’s small fan. |
| ——END—— | ||
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
