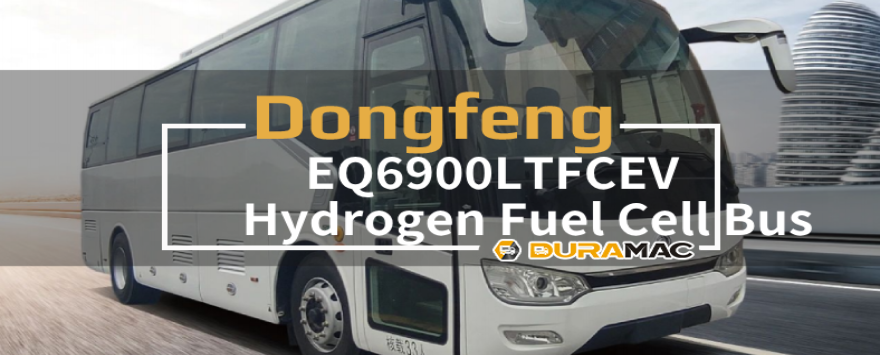

EQ6900LTFCEV | Dongfeng Hydrogen Fuel Cell Coach
EQ6900LTFCEV is a medium-sized fuel cell bus developed by Dongfeng Special Automobile Co., Ltd. It is 8995mm long, 2500mm wide, 3540mm high, and has a total mass of 14500kg. It is suitable for urban feeder buses or shuttles. The vehicle is equipped with a hydrogen-air proton exchange membrane fuel cell and a lithium iron phosphate battery pack, and is equipped with a permanent magnet synchronous motor (peak power 260kW), achieving zero-emission operation and a maximum speed of 100km/h. The vehicle has a rated passenger capacity of 25-33 people, a curb weight of 10900-11650kg, and a wheelbase of 4780mm. Its technical route takes into account both endurance and environmental protection performance, reflecting Dongfeng’s strength in the large-scale application of hydrogen energy buses.
As part of EMAC, DuraMac provides complete powertrain that integrated with DCEC engine, Fast-Eaton clutch, FAST-CAT transmission, Dongfeng-DANA axle and Komman air suspension, while the electrification of automobile is the certain future, Duramac also get involved with EV powertrain system.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
Advantages of Dongfeng EQ6900LTFCEV Hydrogen Fuel Cell Bus
-
The fuel cell system has a complete and reliable structure, adopts a permanent magnet synchronous motor and an integrated controller, which is safer and more efficient. The fuel cell engine and electronic control system are centrally arranged and isolated from the passenger compartment. The partition area is paved with fire-retardant materials, and key parts are equipped with hydrogen leakage and smoke detection safety devices.
-
Intelligent safety monitoring system: It can realize real-time monitoring of energy storage components, vehicle high-voltage terminals, motors, fuel cell engines and other components, and can alarm and deal with them accordingly to ensure the safety of the vehicle.
-
The vehicle instrument can display the electronic control system, battery system, motor system, electrical accessory system and fuel cell-related data information, alarm information and communication status in real time, and can promptly alarm the driver when there is insufficient residual hydrogen pressure or fuel cell system failure.
-
Use GPS and GPRS network technologies to realize remote monitoring, data collection, data analysis, safety warning, fault diagnosis, etc. of new energy vehicles to improve vehicle operation safety; establish an operation data monitoring system, optimize operation efficiency, and provide information value-added services for vehicle operations.
Technical Specifications
| Total Length (mm): | 8995 |
| Total Width (mm): | 2500 |
| Total Height (mm): | 3540(Built-in air conditioning),3350 |
| Interior Height of Compartment (mm): | 1920 |
| Wheelbase (mm): | 4780 |
| Front Suspension / Rear Suspension (mm): | 1905/2310 |
| Approach/Departure Angle (°): | 12/11 |
| Rated Total Mass (kg): | 14500 |
| Maximum Number of Occupants (persons): | 33 |
| Maximum Speed (km/h): | 100 |
| Tire Specification: | 2030,2060,2090/1850,1880 |
DuraMac
DCEC ISL8.9 series automotive engine is four-strokes engine with 102 mm bore and 120 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 269 HP to 394 HP.
Fast Gear
The F6A Series Automated Transmission uses the FAST automatic transmission, has six front gears, the transmission ratio step arrangement is reasonable, has very outstanding fuel economy. Adopt hydraulic automatic transmission. The F6A Series Automated Transmission has six gears, each with a different reduction ratio.
EV Truck
Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment.
DANA Axle
Applying the advanced technology of DANA with high efficiency, fuel economy, strong load torque, low noise,high reliability, lower procurement cost, low repair cost and lower maintenance cost.
Datong Gear
The Datong HW25712XSJ Heavy Manual No-Sync Gearbox has a torque of 2500 N.m, a gear ratio range of 14.941-1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 993 mm, and a weight of 428 kg.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
- Hydrogen fuel cell bus series
- Power System Parameters
- Chassis parameters and configuration
- Main body Assembly
Transmission Model |
Total Length(mm) |
Overall Width(mm) |
Total Height(mm) |
Maximum Speed (km/h) |
Maximum Total Mass(kg) |
| EQ6110LTFCEV | 10990 | 2550 | 3600 | 100 | 18000 |
| EQ6101CTFCEV | 10490 | 2500 | 3020,3400 | 69 | 18000 |
| EQ6900LTFCEV | 8995 | 2500 | 3540(overhead),3350 | 100 | 14500 |
| EQ6720LTFCEV | 7235 | 2240 | 2850(Built in air conditioning) | 100 | 7600 |
| ——END—— | |||||
Basic information of Dongfeng EQ6900LTFCEV motor |
|||||
| Motor Model | TZ400XS-M135-01 | Motor manufacturer | |||
| Drive motor controller model | KTZ58X56S-A200-03 | Motor type | Permanent magnet synchronous motor | ||
| Rated/peak power of motor (kw) | 135KW/260kW,Protection level ≥ IP68 | Total battery capacity (kWh) | Ningde Times Lithium Iron Phosphate Power Battery, with a battery capacity of 95.25kWh and a protection level>IP68 | ||
| Hydrogen cylinder capacity L | 4×260 | Hydrogen cylinder manufacturer | Zhongcai Technology (Chengdu) Co., Ltd | ||
| ——END—— | |||||
Chassis Parameters And Configuration |
|||||
| Item | Standard Configuration | Optional configuration | |||
| Bearing type | Fully loaded | — — | |||
| front axle | Dongfeng Dena axle, maintenance free wheel end | — — | |||
| rear axle | Electric drive bridge, new energy dedicated rear axle main reducer, maintenance free wheel end | — — | |||
| suspension | Front 2 and rear 4 air suspension, imported brand shock absorbers | — — | |||
| shock absorber | Suspension comes with built-in | — — | |||
| steering | Circular ball steering, hydraulic power steering, steering wheel diameter of Φ 480mm | — — | |||
| transmission shaft | Section 1, universal joint drive shaft | — — | |||
| Brake | Front and rear disc brakes, equipped with brake wear alarm and automatic adjustment arm, air pressure dual pipeline, nylon tube, ESC， Electronic parking, intelligent water release valve. | — — | |||
| tire | 255/70R22.5-16PR， Aluminum alloy wheels, Bridgestone vacuum radial tires, tire pressure warning device and tire explosion-proof device, with spare tire | — — | |||
| blast pump | Oil free piston pump, protection level ≥ IP67 | — — | |||
| other | Front trailer hook, wheel stop block | — — | |||
| ——END—— | |||||
Main body Assembly |
||
| Item | Standard Configuration | Optional configuration |
| Body structure | Load bearing body structure, concave convex floor | — — |
| Interior | Leather covered panels, molded air ducts, luggage racks on both sides of the car, integrated reading lights and air vents | Corridor, luggage rack handrails, hangers, atmosphere lights on both sides of the middle roof |
| Floor | Bamboo woven flooring, imitation wood grain flooring leather | PVC flooring |
| Road signs | LED road signs | — — |
| Car doors and door pumps | Aluminum alloy pneumatic swing door with remote control lock, left safety door | — — |
| Side Windows | The driver’s side window and side window are embedded sliding windows, with one sliding window installed on each side; The front gear, rear gear, driver’s side window, and passenger door glass are white, while the rest are F-green | — — |
| windscreen | Front laminated glass, rear tempered glass | — — |
| Rear view system | Dual ear free electric rearview mirror with electric heating function | — — |
| air-conditioning system | — — | Top mounted electric cooling and heating air conditioner, integrated cooling and heating air conditioner, cooling capacity ≥ 24000Kcal/h |
| Heating system | — — | — — |
| Defroster | Electric defroster | Electric warm air |
| audiovisual system | MP3 player with microphone jack and USB charging port at the driver’s location | — — |
| Satellite positioning system | Multi channel video recording system with (32GB SD card+6 probes+7-inch LCD display), 500g hard drive, Beidou satellite positioning driving recorder | Equipped with external printing function |
| lamps and lanterns | Front and rear combination lighting fixtures, front and rear fog lights, side turn signals, and electrically adjustable low beam height | — — |
| windshield wiper | For scraping type | — — |
| door | Battery box compartment door, rear compartment door, aluminum alloy battery box compartment door | — — |
| seat | Airbag shock absorber driver’s seat, adjustable up and down, driver’s seat belt alarm; The whole vehicle is arranged in a 2+2 configuration, with adjustable backrests for mid-range passenger seats made of imitation leather fabric for road vehicles. All passenger seats are equipped with seat belts to meet operational regulations. | — — |
| Paint | Domestic solid color paint (pattern according to customer requirements) | Metallic paint |
| meter | LCD instrument panel, three-level CAN bus | — — |
| other | 2 4KG fire extinguishers, 7 safety hammers, emergency switches for both interior and exterior passenger doors, DC890B sunroof, 6-QW-802 blocks, half roll front sunshade, onboard terminal, low-speed alarm, light height adjustment device, quartz sand wear-resistant floor leather, passenger door bell, simple side window curtains with time and temperature display electronic clock, battery compartment with automatic fire extinguishing device, electrical conversion horn. | Passenger area high-speed train curtains, suspension rings, sunroof with air purification device, water dispenser, driver surround; Left luggage rack cover. |
| ——END—— | ||
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
