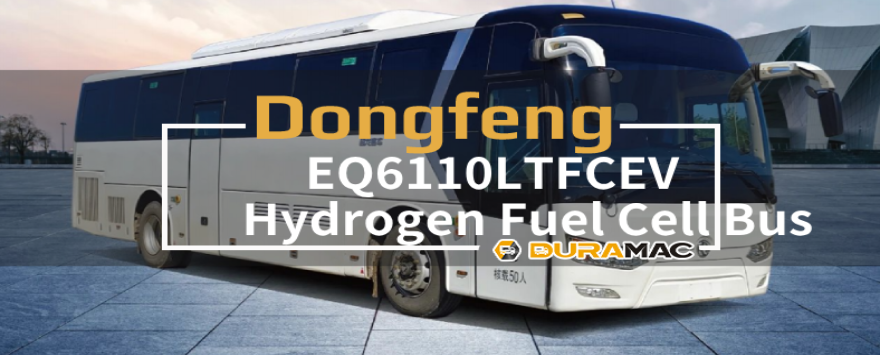

EQ6110LTFCEV | Dongfeng Hydrogen Fuel Cell Coach
EQ6110LTFCEV is an 11meter fuel cell city bus (length 10990mm×width 2550mm×height 3430mm) launched by Dongfeng Special Automobile Co., Ltd., with a total mass of 18000kg and a curb weight of 12300kg or 12800kg. The vehicle is equipped with a hydrogen-air proton exchange membrane fuel cell system, lithium iron phosphate battery and permanent magnet synchronous drive motor (peak power 250kW) to achieve zero-emission operation. Its rated passenger capacity is 39-50 people, the maximum speed is 100km/h, and the wheelbase is 5550mm. The vehicle is equipped with ABS braking system and satellite positioning driving recorder as standard, and can be equipped with ETC device, different side window structures and door layouts, taking into account both safety and customization needs, and adapting to the needs of urban trunk passenger transport.
As part of EMAC, DuraMac provides complete powertrain that integrated with DCEC engine, Fast-Eaton clutch, FAST-CAT transmission, Dongfeng-DANA axle and Komman air suspension, while the electrification of automobile is the certain future, Duramac also get involved with EV powertrain system.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
Advantages of Dongfeng EQ6110LTFCEV Hydrogen Fuel Cell Bus
-
Adopt Baosteel lightweight high-strength steel, constant pressure rigid body closed loop technology design and CAE finite element analysis, while ensuring the strength of the skeleton, reduce the weight and energy consumption; the whole vehicle cathode electrophoresis and car-style full-load assembly process realize the real whole vehicle electrophoresis.
-
The whole vehicle wiring harness adopts well-known brand flame-retardant and high-temperature resistant German standard wire, which is light in weight and good in heat dissipation performance; connectors, fuses, and relays are all imported brands, which are safe and reliable.
Technical Specifications
| Total Length (mm): | 10990 |
| Total Width (mm): | 2550 |
| Total Height (mm): | 3600 |
| Interior Height of Compartment (mm): | 1910 |
| Wheelbase (mm): | 5550 |
| Front Suspension / Rear Suspension (mm): | 2170/3155 |
| Approach/Departure Angle (°): | 9/9 |
| Rated Total Mass (kg): | 18000 |
| Maximum Number of Occupants (persons): | 24-50 |
| Maximum Speed (km/h): | 100 |
| Tire Specification: | 2050,2080/1860,1890 |
DuraMac
DCEC ISL8.9 series automotive engine is four-strokes engine with 102 mm bore and 120 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 269 HP to 394 HP.
Fast Gear
The F6A Series Automated Transmission uses the FAST automatic transmission, has six front gears, the transmission ratio step arrangement is reasonable, has very outstanding fuel economy. Adopt hydraulic automatic transmission. The F6A Series Automated Transmission has six gears, each with a different reduction ratio.
EV Truck
Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment.
DANA Axle
Applying the advanced technology of DANA with high efficiency, fuel economy, strong load torque, low noise,high reliability, lower procurement cost, low repair cost and lower maintenance cost.
Datong Gear
The Datong HW25712XSJ Heavy Manual No-Sync Gearbox has a torque of 2500 N.m, a gear ratio range of 14.941-1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 993 mm, and a weight of 428 kg.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
- Hydrogen fuel cell bus series
- Power System Parameters
- Chassis parameters and configuration
- Main body Assembly
Transmission Model |
Total Length(mm) |
Overall Width(mm) |
Total Height(mm) |
Maximum Speed (km/h) |
Maximum Total Mass(kg) |
| EQ6110LTFCEV | 10990 | 2550 | 3600 | 100 | 18000 |
| EQ6101CTFCEV | 10490 | 2500 | 3020,3400 | 69 | 18000 |
| EQ6900LTFCEV | 8995 | 2500 | 3540(overhead),3350 | 100 | 14500 |
| EQ6720LTFCEV | 7235 | 2240 | 2850(Built in air conditioning) | 100 | 7600 |
| ——END—— | |||||
Basic information of Dongfeng EQ6110LTFCEV motor |
|||||
| Motor Model | TZ400XS-D120-03 | Motor manufacturer | |||
| Drive motor controller model | KTZ58X55S-A120-02 | Motor type | Permanent magnet synchronous motor | ||
| Rated/peak power of motor (kw) | 120KW/250kW | Total battery capacity (kWh) | 127.7kWh | ||
| Hydrogen cylinder capacity L | 4×260L | Hydrogen cylinder manufacturer | Zhongcai Technology (Chengdu) Co., Ltd | ||
| ——END—— | |||||
Chassis Parameters And Configuration |
||
| Item | Standard Configuration | Optional configuration |
| Bearing type | Full load structure | — — |
| EMT system | Optional installation based on road conditions | — — |
| front axle | Dongfeng Dena Bridge 6.5T, maintenance free wheel end | — — |
| rear axle | Dongfeng Dena Bridge 11.5T, maintenance free wheel end | — — |
| suspension | Front 2 and rear 4 air suspension, imported brand shock absorbers | — — |
| shock absorber | Suspension comes with built-in | — — |
| steering | Circular ball steering, hydraulic power steering, steering wheel diameter of Φ 480mm | — — |
| transmission shaft | Section 1, universal joint drive shaft | — — |
| brake | Front and rear disc brakes, equipped with brake wear alarm and automatic adjustment arm, air pressure dual pipeline, nylon tube, ESC， Electronic parking, intelligent water release valve. | — — |
| tire | 11R22.5,Aluminum alloy wheels, Bridgestone vacuum radial tires, tire pressure warning device and tire explosion-proof device, with spare tire | — — |
| blast pump | Oil free piston pump, protection level ≥ IP67 | — — |
| other | Front trailer hook, wheel stop block | — — |
| ——END—— | ||
Main body Assembly |
||
| Item | Standard Configuration | Optional configuration |
| Body structure | Load bearing body structure, concave convex floor, vehicle electrophoresis | — — |
| Interior | Leather covered panels, molded air ducts, luggage racks on both sides of the car, integrated reading lights and air vents | — — |
| Floor | Bamboo woven flooring, imitation wood grain flooring leather | PVC flooring |
| Road signs | — — | LED road signs |
| Car doors and door pumps | Aluminum alloy pneumatic swing door with remote control lock, left safety door | — — |
| Side Windows | Front laminated glass, rear tempered glass, driver’s side window and the last left and right tailgate embedded sliding windows; The front gear, rear gear, driver’s side window, and passenger door glass are white, while the rest are F-green | — — |
| windscreen | Front laminated glass, rear tempered glass | — — |
| Rear view system | Dual ear free electric rearview mirror with electric heating function | — — |
| air-conditioning system | — — | Top mounted electric cooling and heating air conditioner, integrated cooling and heating air conditioner, cooling capacity ≥ 24000Kcal/h |
| Heating system | — — | Electric warm air |
| Defroster | Electric defroster | — — |
| audiovisual system | MP3 player with microphone jack and USB charging port at the driver’s side; | — — |
| Satellite positioning system | Multi channel video recording system with (32GB SD card+6 probes+7-inch LCD display), 500g hard drive | Beidou satellite positioning driving recorder with printing function |
| lamps and lanterns | Front and rear combination lamps, front and rear fog lights, side turn signals, low beam height adjustable device | — — |
| windshield wiper | For scraping type | — — |
| door | Battery box compartment door, rear compartment door, aluminum alloy compartment door | — — |
| seat | Airbag shock absorber driver’s seat, faux leather fabric, adjustable up and down, with seat belt alarm, passenger seat 2+2 layout, with faux leather fabric seat, adjustable backrest, with lateral movement, foot pedal, downward pressure armrest | — — |
| Paint | Domestic solid color paint | Metallic paint |
| meter | LCD instrument panel, three-level CAN bus | — — |
| other | 2 4KG fire extinguishers, 6 safety hammers, emergency switches for interior and exterior passenger doors, DC890B sunroof, 6-QW-802 blocks, half roll front sunshade, onboard terminal, low-speed alarm, light height adjustment device, quartz sand wear-resistant floor leather, passenger door bell, simple side window curtains with time and temperature display electronic clock, battery compartment with automatic fire extinguishing device, electrical conversion horn. | Passenger area high-speed train curtains, sunroof with air purification device, water dispenser, aisle, luggage rack handrails, hangers, atmosphere lights on both sides of the middle roof; Left luggage rack cover. |
| ——END—— | ||
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
