EQ6580CTBEV | Dongfeng Electric Coach
EQ6603LTBEV is a 6meter pure electric city bus (about 5990mm in length) produced by Dongfeng Special Automobile Chaolong Bus, designed for short-distance urban and rural passenger transport. This model is equipped with an efficient pure electric power system, with a curb weight of about 4300-4500kg, and a rated passenger capacity that can flexibly adapt to small and medium-sized transportation needs (the specific number of passengers has not been disclosed, but the same series of EQ6603LT highway buses won the title of “Urban and Rural Bus Star” in 2019-2020). Its core advantages include low operating costs and high adaptability, standard environmental protection and energy-saving technology, optional air suspension system, and a balance between driving smoothness and passability in complex road conditions. It is one of the representative products under the trend of “large to small” urban and rural public transportation.
As part of EMAC, DuraMac provides complete powertrain that integrated with DCEC engine, Fast-Eaton clutch, FAST-CAT transmission, Dongfeng-DANA axle and Komman air suspension, while the electrification of automobile is the certain future, Duramac also get involved with EV powertrain system.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
Advantages of Dongfeng EQ6580CTBEV Pure Electric Bus
-
Large storage space: The extra-large middle luggage compartment can meet the needs of passengers carrying a large amount of luggage.
-
Spacious interior space: It meets the needs of small and high-level seat space layout.
-

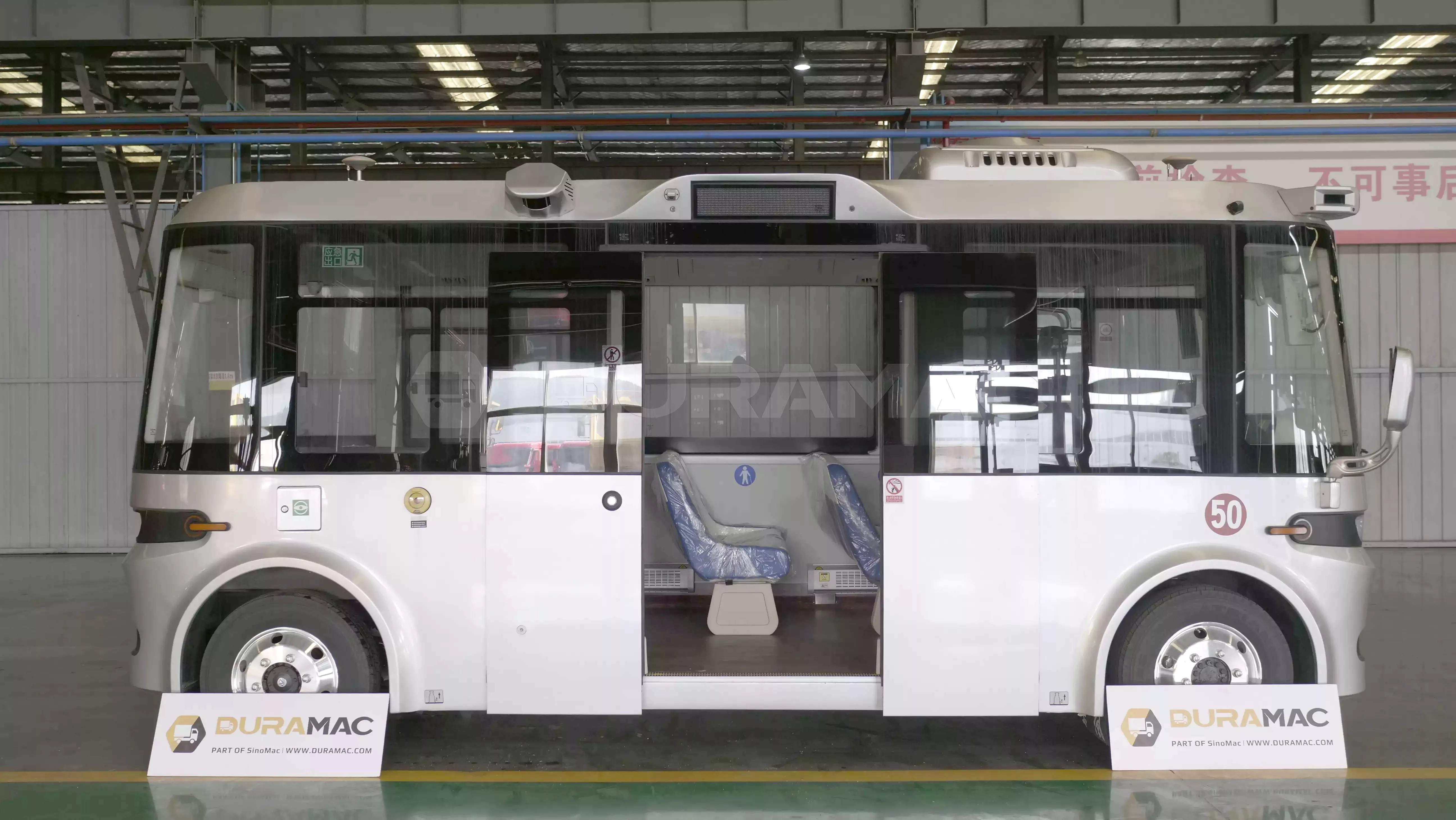

The body adopts a streamlined design, a simple and elegant appearance, a panoramic front windshield, and the whole vehicle is stylish and beautiful.
Technical Specifications
| Total Length (mm): | 5800 |
| Total Width (mm): | 2100 |
| Total Height (mm): | 2640/2760/2850 |
| Interior Height of Compartment (mm): | 2110 |
| Wheelbase (mm): | 4000 |
| Front Suspension / Rear Suspension (mm): | 900/900 |
| Approach/Departure Angle (°): | 19°/19° |
| Rated Total Mass (kg): | 5300 |
| Maximum Number of Occupants (persons): | 19/10-13 |
| Maximum Speed (km/h): | 69 |
| Tire Specification: | 1745/1770 |
DuraMac
DCEC ISL8.9 series automotive engine is four-strokes engine with 102 mm bore and 120 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 269 HP to 394 HP.
Fast Gear
The F6A Series Automated Transmission uses the FAST automatic transmission, has six front gears, the transmission ratio step arrangement is reasonable, has very outstanding fuel economy. Adopt hydraulic automatic transmission. The F6A Series Automated Transmission has six gears, each with a different reduction ratio.
EV Truck
Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment.
DANA Axle
Applying the advanced technology of DANA with high efficiency, fuel economy, strong load torque, low noise,high reliability, lower procurement cost, low repair cost and lower maintenance cost.
Datong Gear
The Datong HW25712XSJ Heavy Manual No-Sync Gearbox has a torque of 2500 N.m, a gear ratio range of 14.941-1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 993 mm, and a weight of 428 kg.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
Transmission Model |
Total Length(mm) |
Overall Width(mm) |
Total Height(mm) |
Maximum Speed (km/h) |
Maximum Total Mass(kg) |
| EQ6690CTBEV | 6945 | 2340 | 2940/2985/3090 | 69 | 9900 |
| EQ6603LTBEV | 5985 | 2260 | 2860/(2910)/3025 | 100 | 8500 |
| EQ6580CTBEV | 5800 | 2100 | 2640/2760/2850 | 69 | 5300 |
| EQ6690CTBEV1 | 6945 | 2340 | 2940/2985/3090 | 69 | 9900 |
| ——END—— | |||||
Basic information of Dongfeng EQ6603LTBEV motor |
|||||
| Motor Model | TZ228XS035DN01 | Engine Manufacturer | |||
| Position/Fuel Type | Rear-mounted/Pure Electric | Motor Type | Permanent Magnet Motor | ||
| Motor Rated/Peak Power (kw) | 60/115 | Rated/peak torque (N.m) | 135/350 | ||
| Battery Capacity (kWh)/Voltage (V) | CATL 59.44/418.6 | Driving Range (40km/h Constant Speed) | 300 | ||
| ——END—— | |||||
Chassis Parameters And Configuration |
|||||
| Bearing form | Fully loaded | Optional configuration | |||
| Frame Type | Fully loaded frame, low floor, with front tow hook | — — | |||
| Drive Type | Direct motor drive | — — | |||
| Front Axle | 2T, disc brake | — — | |||
| Rear Axle | 3.5T, electric drive rear axle, disc brake | — — | |||
| Suspension | Front independent suspension, coil spring shock absorber; rear leaf spring non-independent suspension | — — | |||

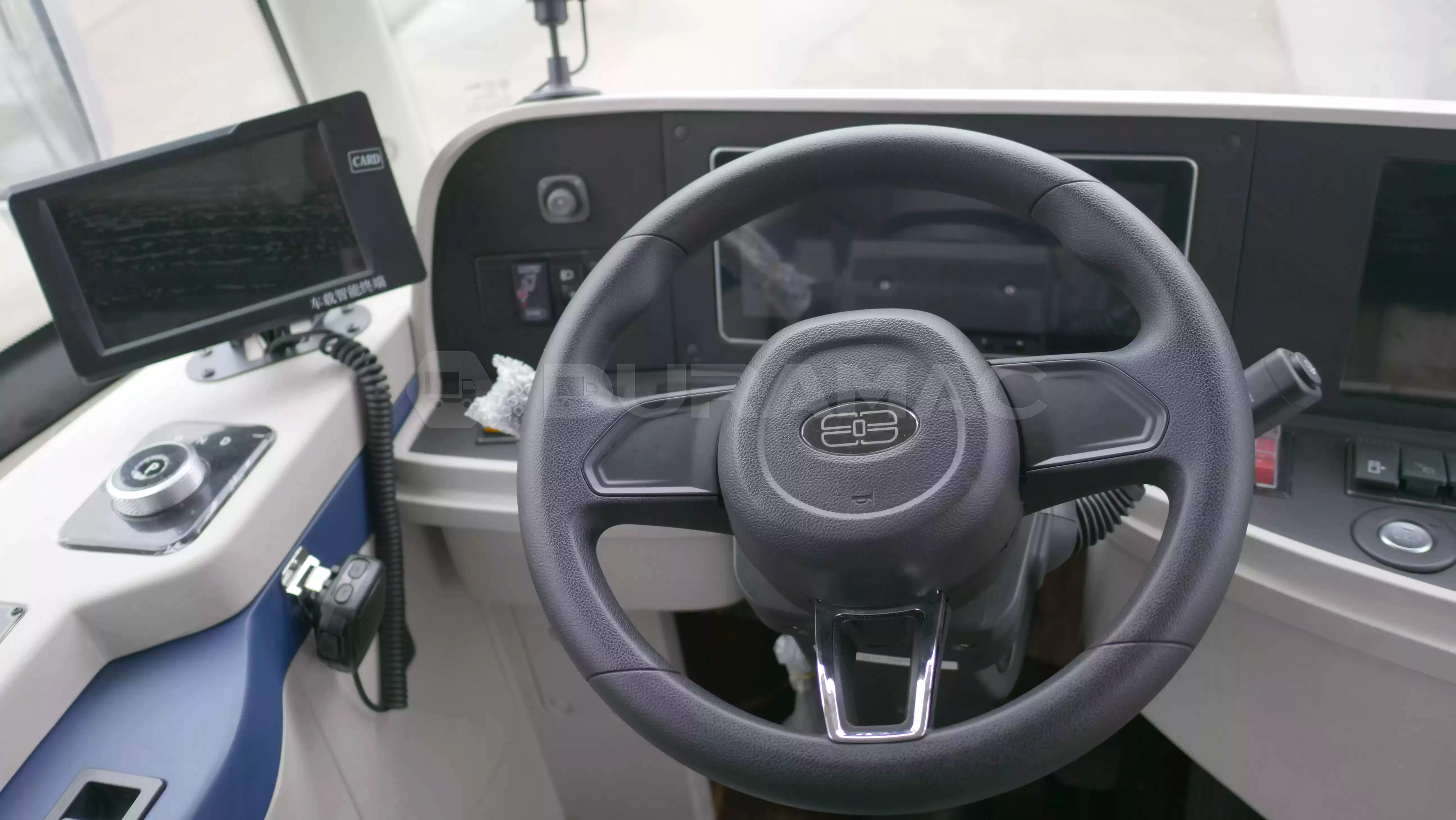

| Steering | Electric power assist, electric recirculating ball X-EPS | — — | |||
| Braking | Electronic power hydraulic braking system, Ebooster electronic braking, ESC vehicle stability system, EPB electronic handbrake | — — | |||

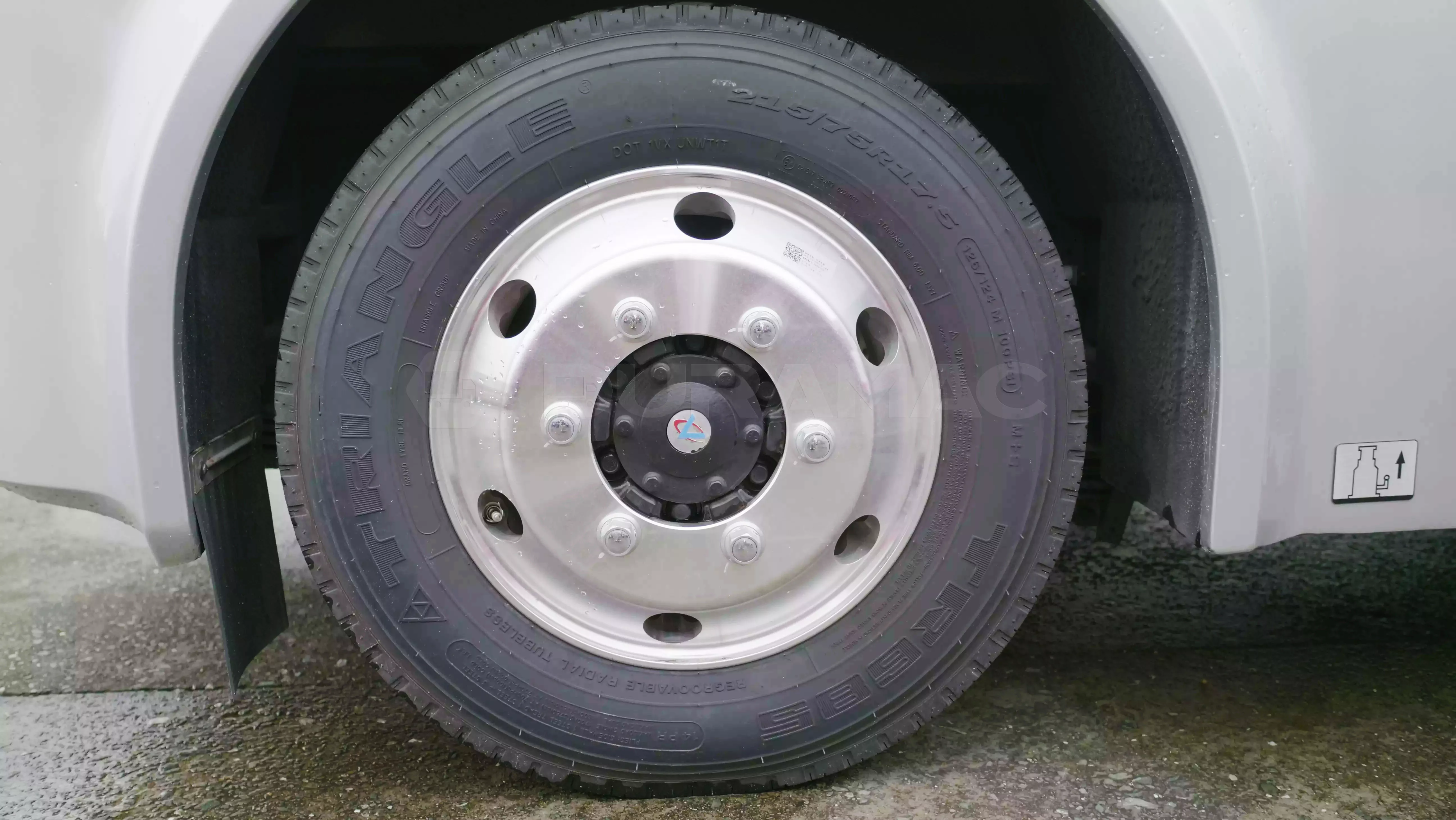

| Tire/Wheel Rim | 215/75R17.5-14PR, stainless steel wheel rim | — — | |||
| Others | Electronic fan | — — | |||
| ——END—— | |||||
Main body Assembly |
||
| Item | Standard Configuration | Optional configuration |
| Body structure | Full integral structure, welded with high-strength steel; first-level step; front/rear enclosure skins formed by steel plate stamping; whole frame cathode electrophoresis; whole vehicle foaming. | — — |

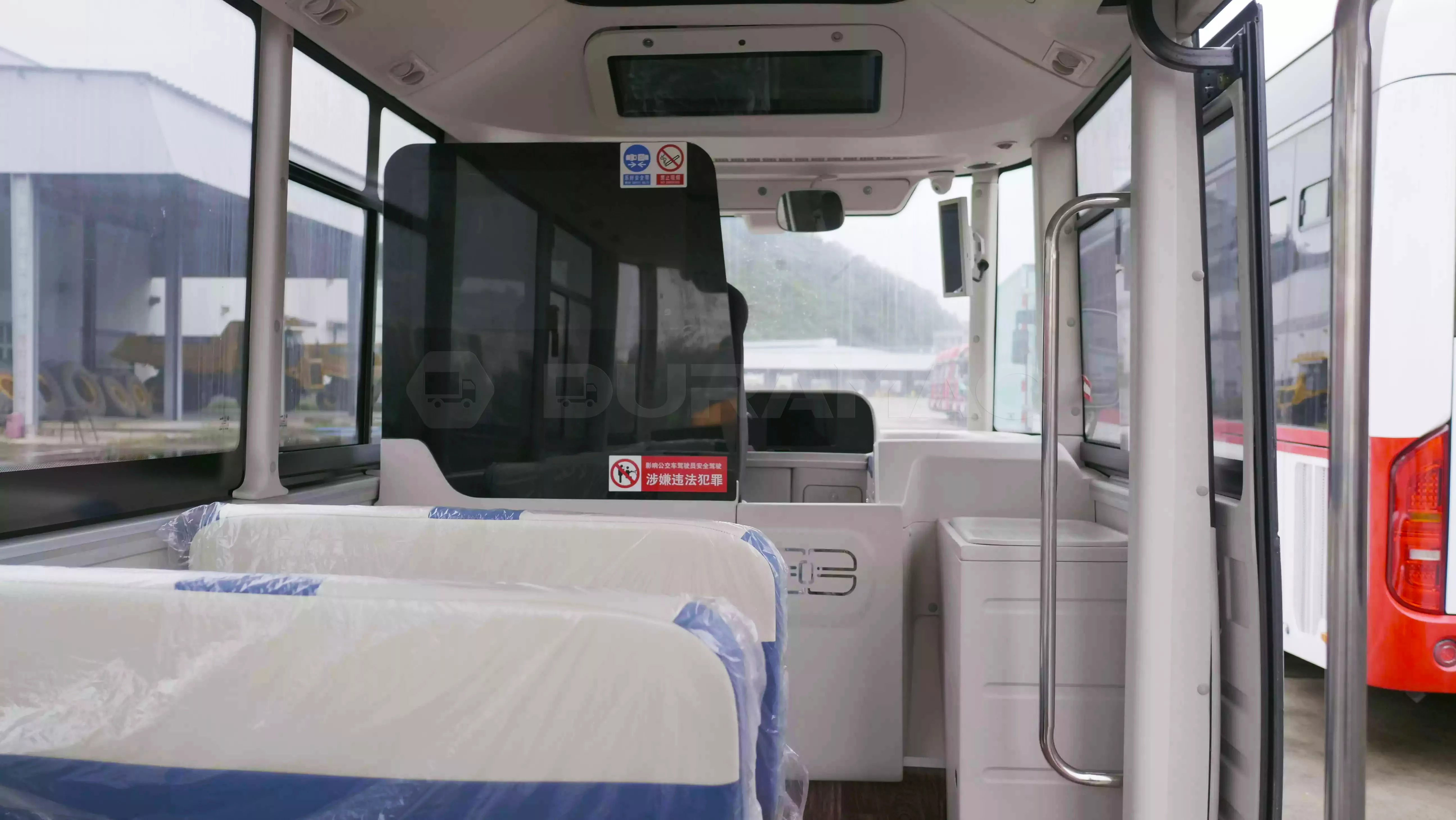

| Interior Trim | Molded front/rear ceiling, linen air duct, driver enclosure, integral foamed instrument panel, stainless steel handrails, molded leather middle ceiling; 4 ceiling lights, top perimeter LED blue light strip. | — — |
| Floor | PVC floor, quartz sand anti-slip wear-resistant floor leather, aluminum alloy pressing strip. | — — |

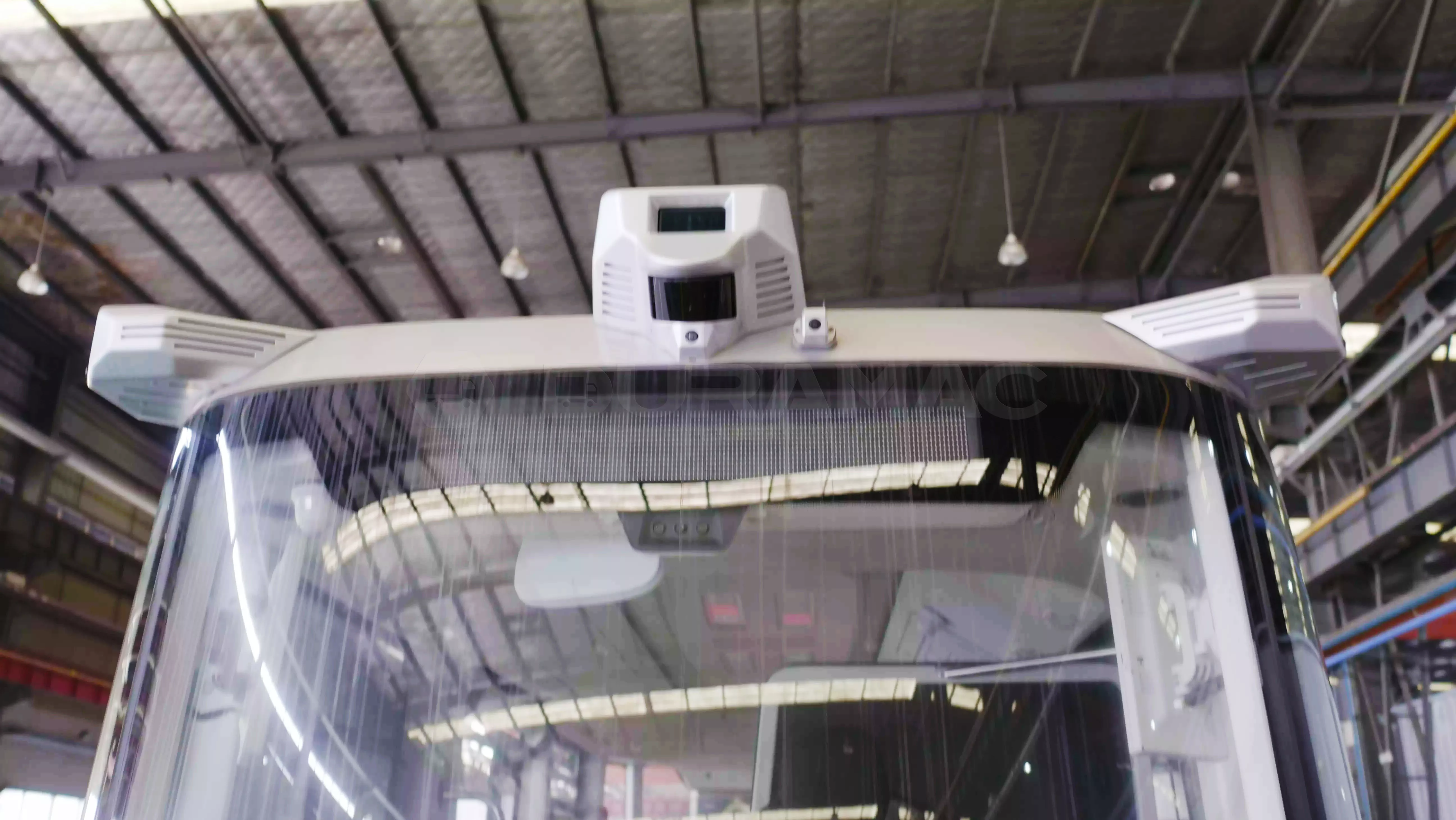

| Route Sign | Front, middle and rear LED route signs. | — — |

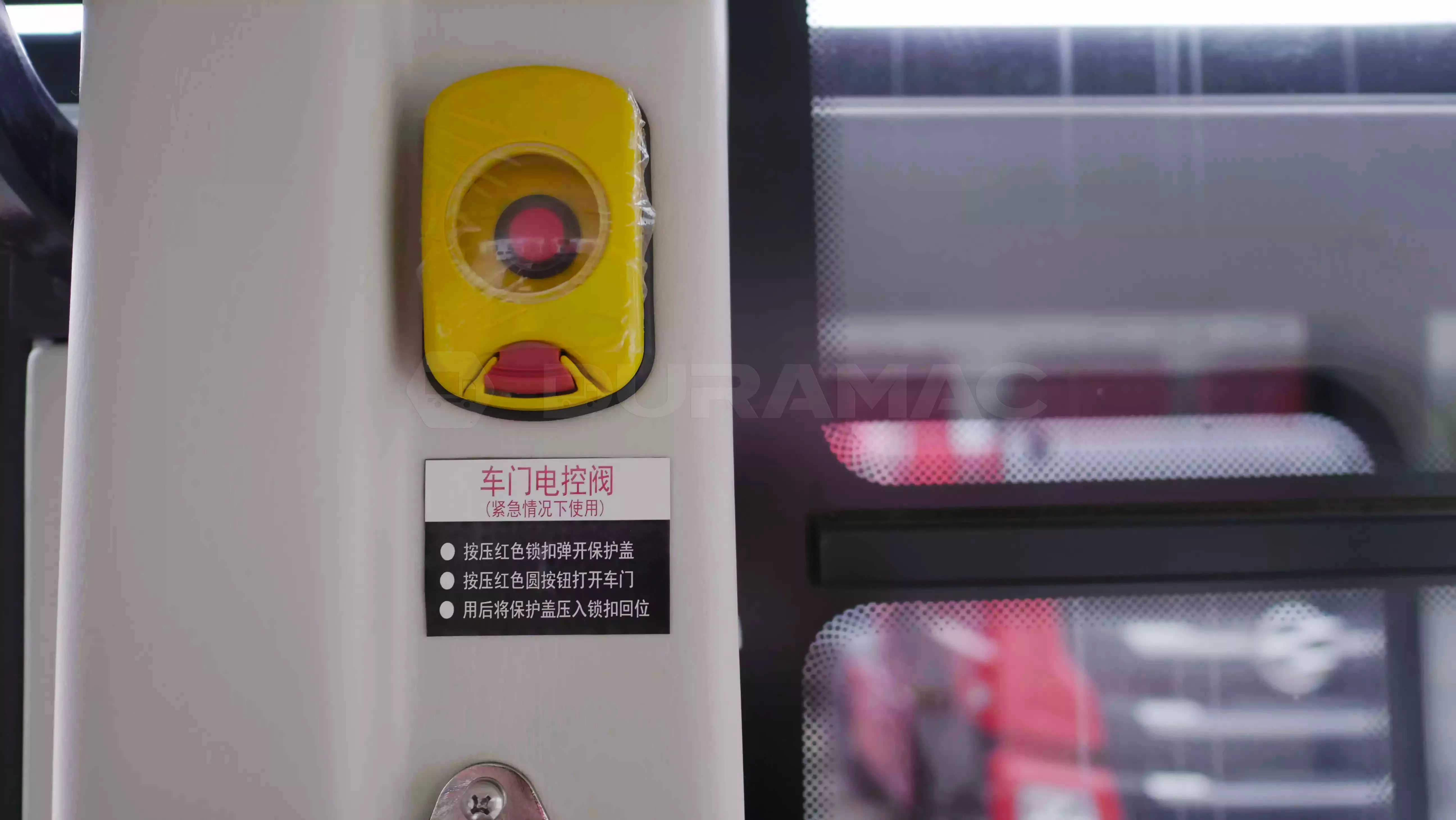

| Doors & Door Pumps | Middle door: electric plug door; passenger door: emergency manual switch. | — — |
| Glass | Front and rear windshields: laminated glass; driver window: built-in push-pull window; side windows: built-in push-pull windows; passenger door glass: clear glass | — — |
| Rearview System | Electrically adjustable exterior rearview mirrors, interior rearview mirror, electronic rearview mirror | — — |
| Air Conditioning System | Roof-mounted single-cooling air conditioner (11kW) | — — |
| Heating System | 2 PTC wall-mounted radiators | — — |
| Defroster | Electric defroster | — — |

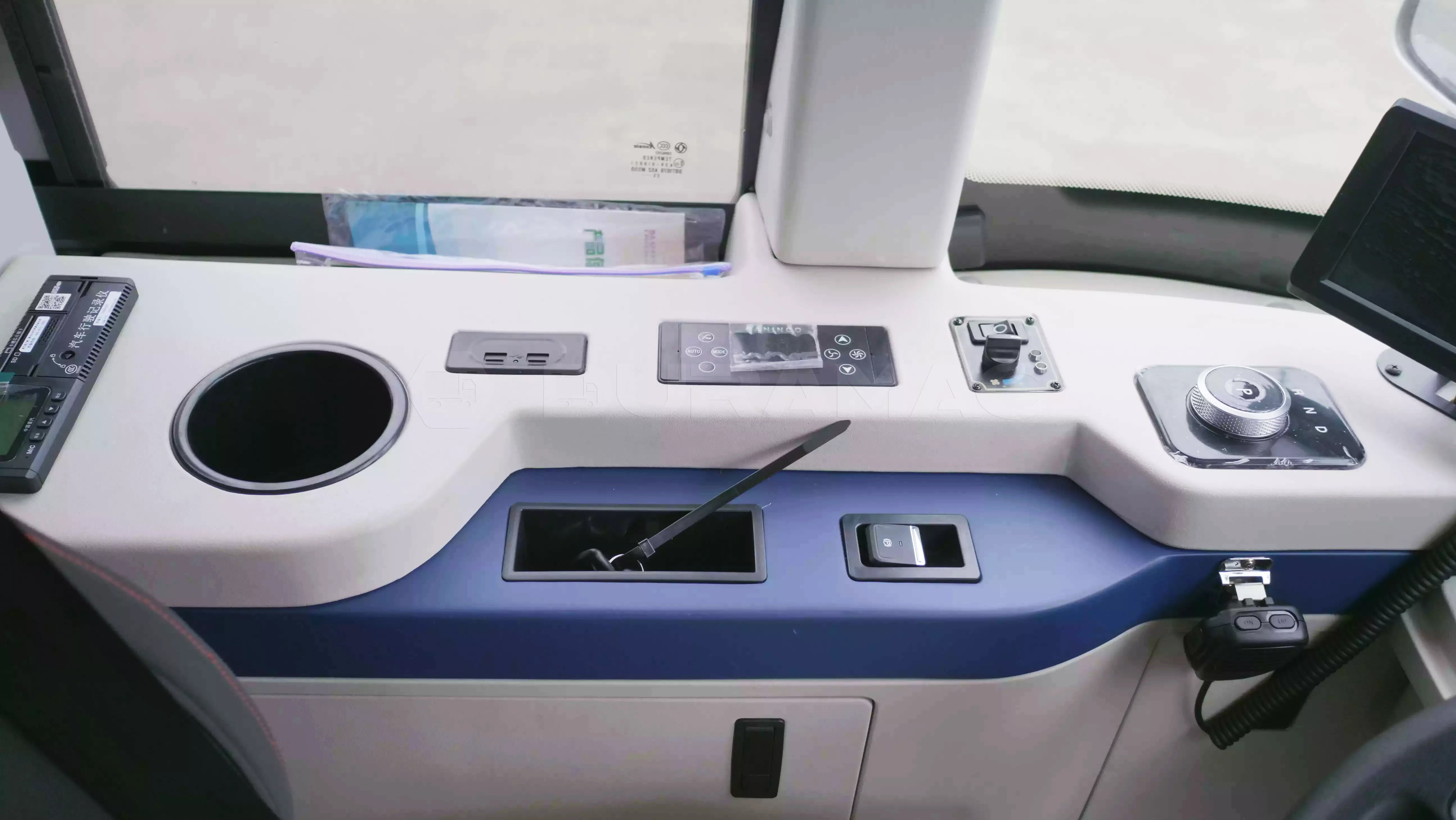

| Audiovisual System | MP3 player with microphone jack, USB charging port, in-vehicle central control screen | 28-inch passenger guidance screen, 32-inch comprehensive information screen |
| Satellite Positioning System | Beidou satellite positioning driving recorder (equipped with 5 probes + 7-inch LCD display: 1. Monitor driver; 2. Monitor passenger door; 3. Monitor passenger area; 4. Monitor front road; 5. Reverse monitoring) | Exterior 360° surround view camera, DMS driver behavior detection, dispatch screen |
| Iights | Front combination headlights + rear combination lights + front decorative lights (called breathing lights) + license plate lights + rear fog lights + reverse lights + side turn signals | — — |
| Wipers | Single-arm wiper | — — |
| Hatch Doors | Front and rear steel plate stamped hatch doors | — — |

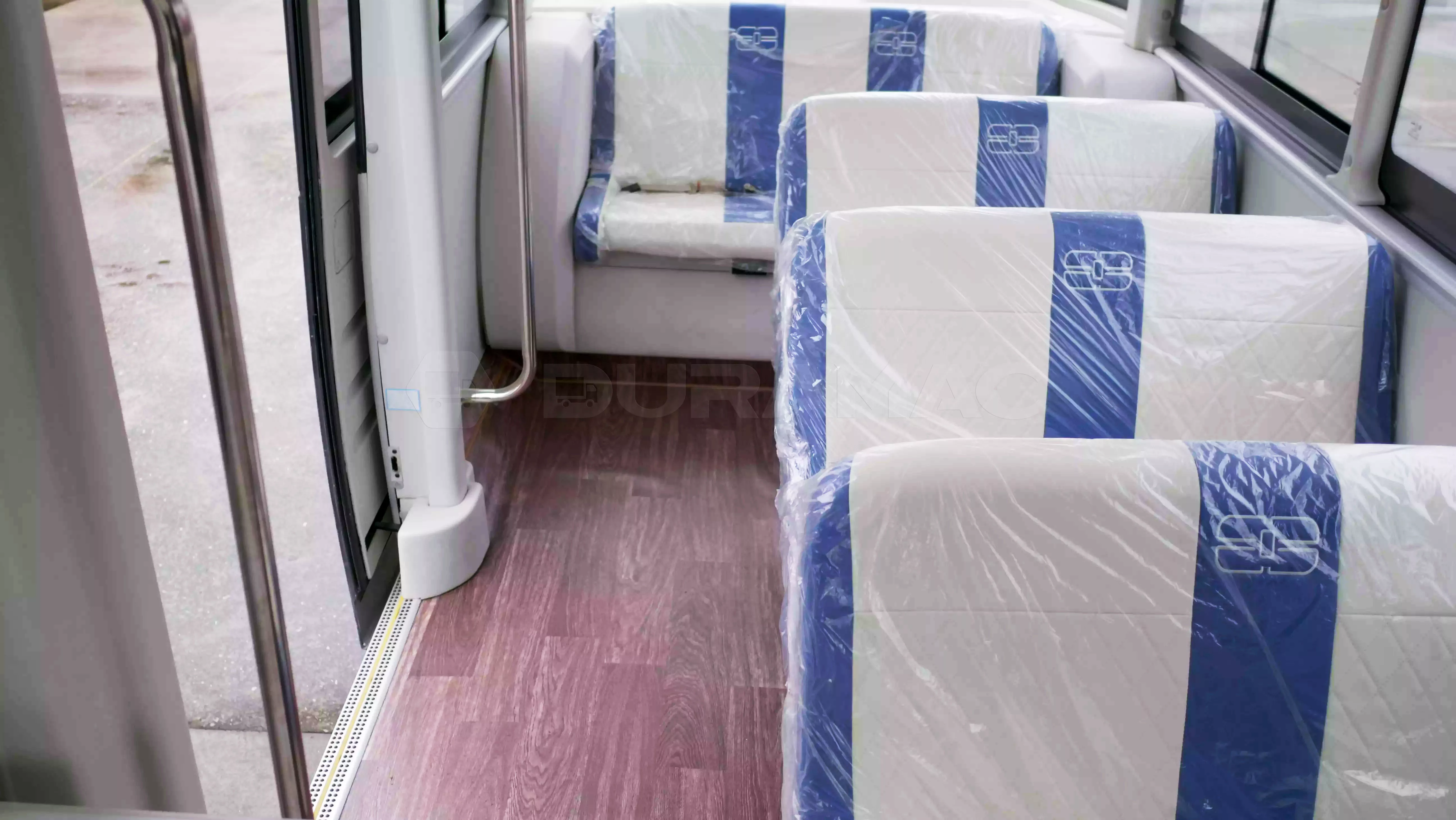

| Seats | Mechanically damped driver seat, driver seat seatbelt alarm, European-style leather cushion bus seats (standard configuration: 9+1 seats; each row of passenger seats is additionally equipped with USB ports on the side) | Soft cushion business seats |
| Paint | Metallic paint; patterns and colors as per customer requirements | — — |
| Instrument | CAN instrument with one whole vehicle module | — — |
| Others | 1×4KG fire extinguisher, 5 safety hammers, internal and external passenger door emergency switches, 3 manual-automatic integrated fire extinguishers in electrical cabinets, low-speed alarm, trash can and bracket, refrigerator rack, umbrella rack | Refrigerator, electric retractable step, 55-inch side large screen, middle fixed glass sunshade film, wood-grain floor leather |
| ——END—— | ||
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
