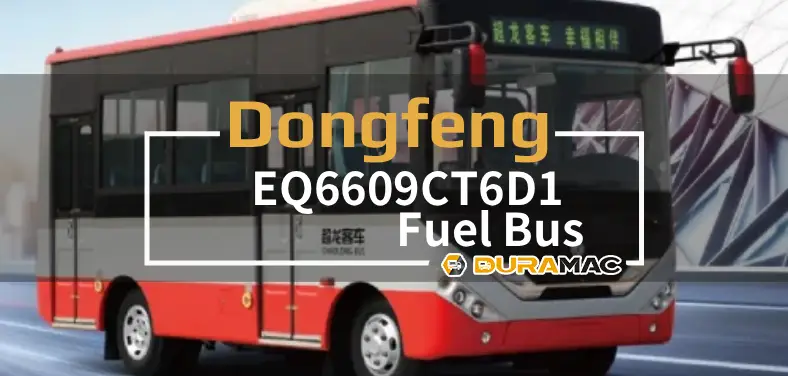

EQ6609CT6D1 | Dongfeng Fuel Bus
The EQ6609CT6D1 is a 6-meter-class city bus chassis (5990mm long, 2270mm wide, 2890-2940-3110mm high (with air conditioning)) manufactured by Dongfeng Special Vehicle Chaolong Bus. It is specifically designed for conversion into motorhomes and other special vehicles. Its core configuration includes a 2.36L diesel engine (140 hp), matched with a 9-leaf front and 11-leaf rear leaf spring suspension. The curb weight is 4300-4500kg (increased to 4500kg with optional air conditioning), with a top speed of 69km/h, and meets China’s National V emission standards. This chassis offers good passability (approach/departure angles 20°/14°) and strong load-bearing capacity (6670kg gross vehicle weight), making it suitable for unpaved roads and field operations.
As part of EMAC, DuraMac provides complete powertrain that integrated with DCEC engine, Fast-Eaton clutch, FAST-CAT transmission, Dongfeng-DANA axle and Komman air suspension, while the electrification of automobile is the certain future, Duramac also get involved with EV powertrain system.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
Advantages of Dongfeng EQ6609CT6D1 fuel bus
Good driving comfort: The vehicle can be equipped with a full-top air-conditioning system, a fuel-powered independent heating system, a vibration-reducing seat for the driver, a cushioned seat for the passenger, a full-width sunshade, a folding curtain for the side windows, an electronic clock, and luxurious quartz sand floor leather..
The body adopts a streamlined design: square tone, panoramic front windshield, large center grille, and the whole vehicle is stylish and beautiful.
Technical Specifications
| Total Length (mm): | 5990 |
| Total Width (mm): | 2270 |
| Total Height (mm): | 2890/2940/3110(air conditioner) |
| Interior Height of Compartment (mm): | 1980 |
| Wheelbase (mm): | 3300 |
| Front Suspension / Rear Suspension (mm): | 1000/1690 |
| Approach/Departure Angle (°): | 22°/14° |
| Rated Total Mass (kg): | 6670 |
| Maximum Number of Occupants (persons): | 19/10/18 |
| Maximum Speed (km/h): | 69 |
| Tire Specification: | front 1810,rear 1670 |
DuraMac
DCEC ISL8.9 series automotive engine is four-strokes engine with 102 mm bore and 120 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 269 HP to 394 HP.
Fast Gear
The F6A Series Automated Transmission uses the FAST automatic transmission, has six front gears, the transmission ratio step arrangement is reasonable, has very outstanding fuel economy. Adopt hydraulic automatic transmission. The F6A Series Automated Transmission has six gears, each with a different reduction ratio.
EV Truck
Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment.
DANA Axle
Applying the advanced technology of DANA with high efficiency, fuel economy, strong load torque, low noise,high reliability, lower procurement cost, low repair cost and lower maintenance cost.
Datong Gear
The Datong HW25712XSJ Heavy Manual No-Sync Gearbox has a torque of 2500 N.m, a gear ratio range of 14.941-1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 993 mm, and a weight of 428 kg.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
Model | Total Length(mm) | Overall Width(mm) | Total Height(mm) | Maximum Speed (km/h) | Maximum Total Mass(kg) |
| EQ6609CT6D | 5990 | 2270 | 2890/2940/3110(air conditioner) | 69 | 6670 |
| EQ6670CT6D | 6730 | 2270 | 2890/2940/3110 | 69 | 7500 |
| EQ6603LT6A | 5985 | 2260 | 2870(2820)/2985 | 100 | 6350 |
| EQ6608LT6D | 5990 | 2280 | 2870/3020 | 100 | 6000 |
| EQ6668LT6D | 6630 | 2280 | 2870/3040 | 100 | 6670 |
| EQ6738LT6D | 7340 | 2280 | 2895/3040 | 100 | 7700 |
| EQ6753LT6D | 7545 | 2430 | 3495/3335/3275 | 100 | 8800 |
| EQ6609CT6D1 | 5990 | 2270 | 2890/2940/3110 | 69 | 6670 |
| EQ6609CT6D2 | 5990 | 2270 | 2890/2940/3110 | 69 | 6670 |
| ——END—— | |||||
Basic information of Dongfeng EQ6609CT6D motor | |||
| Engine Model | YCY24140-60 | Engine Manufacturer | yuchai |
| Location/Fuel Type | Front-mounted/Diesel | Enginetype | Inline-four |
| Maximum power (kw) | 103kW/2950r/min | Maximum Torque (Nm/rpm) | 400N·m/1400 – 2000r/min |
| Displacement (ml) | 2360 | emission standard | country VI |
| ——END—— | |||
Chassis Parameters And Configuration | ||
| Item | Standard Configuration | Optional configuration |
| Chassis Model | EQ6570KS6T1, Dongfeng Special Vehicle Co., Ltd. | — — |
| Transmission | Fast 5th gear | — — |
| Clutch | Φ325 diaphragm spring, clutch booster | — — |
| Front Axle | Dana Axle (2.5T) | — — |
| Rear Axle | Dana Axle (5T) | — — |
| Suspension | Number of leaf springs (front/back), front 9/back 11 | — — |
| Steering | Power steering | — — |
| Braking | Pneumatic brake, dryer, exhaust brake, ABS, self – adjusting arm, wear alarm | Retarder |
| Fuel Tank | 90L | — — |
| Tire | 7.00R16LT(No spare tire) | model: 205/75R17.5,Tpms |
| Battery/Generator | 6-QW-105MF x 2/28V/70A(Without air conditioning) | 6-QW-120MF/28V/100A(Equipped with air conditioning) |
| others | Copper water tank, urea electric heating, Electric manual oil pump | Oil circuit heating, centralized lubrication, Condenser, engine warm-up |
| ——END—— | ||
Main body Assembly | ||
| Item | Standard Configuration | Optional configuration |
| Body structure | Non load bearing type | — — |
| Interior | Ordinary interior | Air conditioning interior |
| Car doors and door pumps | Middle and rear pneumatic folding doors with anti pinch devices (emergency switches for passenger doors inside, outside, and near the driver), driver door limit card slot | Pneumatic folding door |
| Side Windows | Closed up and down, medium aluminum alloy sliding window (the first and third pieces on the left, and the third piece on the right is the window in the middle) | Optional window in window |
| Windshield | Front windshield laminated, rear windshield tempered | — — |
| Rearview System | Steel frame type, manual reversing mirror | — — |
| Air – conditioning System | Electric fan | Roof-mounted air conditioner 13.5KW |
| Heating System | — — | Oil fired liquid heater YJQ11.6KW, optional number of heaters |
| Optional simple water heater (quantity: 2 pieces), optional wall mounted water heater | ||
| Defroster | Shift defroster 24V, 170W | — — |
| Audio-visual System | MP3 player with microphone jack and USB charging port | MP5 car hard drive player, 17 inch/19 inch manual folding display, MP3 player with optional SD card or USB flash drive |
| Satellite Positioning System | Beidou satellite positioning driving recorder with storage and upload functions (dual 32GB SD cards) 5 Probe+7-inch LCD display (1. Monitor the driver, 2. Monitor the upper passenger door, 3. Monitor the passenger area from front to back, 4. Monitoring the road ahead, 5. Reverse monitoring, 6. Monitoring the exit door) | Multi channel video recording system (32GB SD card+6 probes+7-inch LCD display), external printer for driving recorder |
| Lamp | Front combination, rear wall split lighting fixtures, front headlight low beam upper and lower height electric adjustment device | — — |
| Wiper | Opposite direction electric wiper | — — |
| Hatch Door | Steel plate stamping door，Standard battery door | Optional left-side luggage compartment door |
| Seats | 2+1 layout, 16 seats, bus seat, driver seat safety belt alarm | Shock absorber driver’s seat,Soft padded bus seat |
| Paint | Domestic solid color paint | Metal paint |
| Others | Engine speed limit of 69km/h, PVC floor leather, flat floor, half roll sunshade, 1 fire extinguisher (2Kg), 5 safety hammers, DC890A sunroof, air horn, driver’s electric fan, mechanical power-off switch, engine compartment automatic fire extinguishing device, electronic clock, foot pad under clutch pedal, OBD seat, heavy-duty vehicle remote emission terminal T-BOX; Simplified driving area protection and isolation facilities. | ETC car mounted device, quartz sand floor leather, aluminum patterned board, folding side curtains, double half width tube sunshade, remote control lock, simple loudspeaker, electronic station announcement, coin operated machine (manual, electric), DC890B ventilation sunroof, exit doorbell, fuel heater compartment automatic fire extinguisher (required when selecting fuel heater), optional flammable and explosive detection, driver behavior monitoring, front door opening unable to start, automatic glass breaker, lifting ring, road sign. |
| ——END—— | ||
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
